Versa Operating System
A Broad Spectrum of Software-Defined Solutions
This product is no longer available.
Please Contact us for more information.

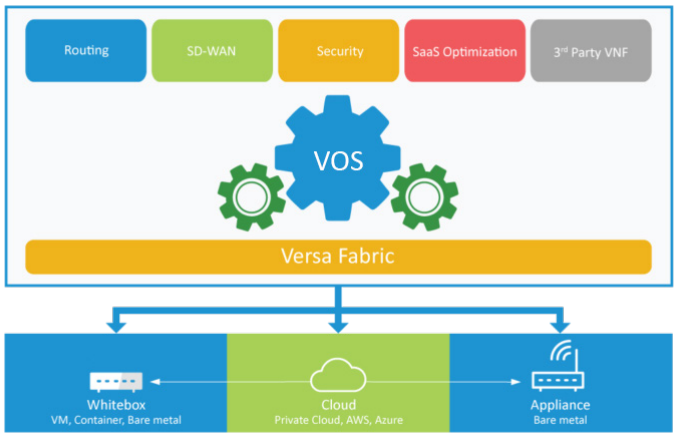

The highly flexible Versa Operating System (VOS) enables businesses, organizations, and service providers to deploy a broad spectrum of software-defined solutions including Secure SD-WAN and Secure Access Service Edge (SASE) in branch offices, cloud, campus and data centers. Regardless of where VOS is deployed (on-premises or in the cloud), all network and security capabilities are provisioned and managed centrally through the Versa Director, a single-pane-of-glass management platform. Versa Analytics works in conjunction with Versa Director to provide visibility, base-lining, correlation, and predictive analysis for network, application usage, and security events. With Versa Analytics, all network security, application usage, export reports and logs are analyzed, filtered and are easily searchable for events to derive actionable insights.
VOS is a cloud-native, multitenant, and multi-service software stack with a full set of networking capabilities, including Full-featured SD-WAN and advanced scalable routing, along with a wide range of comprehensive integrated security functions – making it possible to seamlessly design rich managed services and software-defined enterprise architectures that allow for agility.
VOS is purpose-built with enterprise-class carrier-grade operational capabilities, including a distributed control and data plane fabric with built-in elasticity and ondemand capacity. Powerful service chaining for both third-party services, including appliances, enables Enterpirses and service providers to easily integrate advanced network and security functions into any type of infrastructure.
Another key Versa capability for improving operational efficiency and service agility, as well as lowering total costs, is multi-tenancy. VOS has built-in multi-tenancy that enables service for hundreds of customers, segments, and organizations providing deployment flexibility, security, and economies of scale.
VOS is fundamentally different than proprietary and expensive network equipment. Deployed on low-cost x86 architectures and appliances utilizing the latest advances in processors and virtualized infrastructure, VOS radically reduces capital purchases and expensive upgrades/refreshes that are common with legacy network hardware devices.
VOS supports the widest set of deployment options in the industry and can be deployed in both legacy networks, cloud, SASE, and new SDN environments. VOS is designed to run directly on bare metal Versa Cloud Service Gateway (CSG) set of appliances with industry leading features and competitive price points. VOS is also supported to run on certified and preconfigured white box platforms, hypervisor VMs (VMware ESXi, KVM, Xen and Microsoft Hyper-V), and IaaS platforms (Amazon, Google and Microsoft). VOS takes full advantage of multi-core processors and Intel DPDK support for maximum use of the underlying compute resources, thus resulting in high performance and throughput.
VOS is operations-ready and supports standard protocols and log formats, including Syslog, IPFIX, SNMP and Netconf, making it compatible with existing network management, monitoring, and reporting systems. In addition, Versa provides a centralized, automated management platform for device and service workflows, removing laborious manual tasks, and eliminating the need for unnecessary human intervention.
The result is a multi-tenant, cloud-native software services platform that integrates networking and security services in a manner that scales and is on-demand. Versa does this all while maintaining service continuity and delivery of both Versa and third-party network and security functions – all with significantly reduced hardware costs and better.
|Form Factor||Bare metal (ISO), Virtual Appliance (OVA, QCOW2), Amazon AMI (Amazon Machine Image), Azure VHD|
|Hypervisor||VMware ESXi 5.1 & above, KVM, Xen, Hyper-V|
|uCPE||Versa hosts operating systems with embedded KVM, Support for 3rd party VNFs (contact Versa for full list of certified VNFs)|
|Hardware Acceleration||Native QAT support, Rangeley, Denverton, Skylake-D Intel processor family support, ColetoCreek, Lewisburg QAT chipset support (contact Versa certified white-box vendors for specific capabilities and support)|
|802.11 Wireless AP Support||2.4 and 5 Ghz support, Multiple SSIDs per AP, MU-MIMO support (Wi-Fi module dependent), MRC support (Wi-Fi module dependent)|
|LTE Support||CAT-6, CAT-12 and 5G modems support, Firmware driven modem (internal LTE modem), USB attached LTE Modem support (optional), Dynamic probing support|
|Ethernet||802.1Q (VLAN Tagging), 802.3ad Link Aggregation (LACP) – Active or Standby, 802.1ag CFM (Connectivity and Fault Management), 802.3af (POE) and 802.3at (POE+) support (hardware device dependent)|
|Layer 2||Virtual-switch, bridge-domain, xSTP, IRB, VLAN access/trunk modes, VLAN normalization, LLDP|
|DSL*||Annex A / B based connectivity (see DSL Module Datasheet for more details)|
|T1/E1*||T1 or E1 based connectivity with PPP, HDLC, Frame Relay, MLPPP MLFR options|
|Resiliency||HA: Active-Standby, Multiple controller per Versa Operating System, CPE fallback using Out-of-Band IPsec, Inter-VNF High Availability (Control and Data Plane replication)|
|Operations and APIs||CLI, Telnet/SSH, Syslog, NetFlow, IPFIX, Flow mirroring, NTP v4/6, SNMPv1, SNMPv2, SNMPv3, Netconf/Yang, Packet capture utility|
|Network & Security Functions|
|DHCP IPv4 & IPv6||Client, Relay and Server|
|Routing IPv4 & IPv6||Static routing, BFD, VRRP, VRF/Multi-VRF, RIP v2, OSPF v2/3, BGP, MP-BGP+ (MPLS, IPv6 and L2 extensions), ECMP, Route redistribution, BGP Route-aggregation, MPLS-L3VPN, MPLS-EVPN, VXLAN-EVPN|
|Multicast||PIM SM across SD-WAN, PIM SM with neighbor support on LAN and WAN interfaces, PIM SSM, PIM SM Bootstrap RP, •PIM Rendezvous- Point, IGMP v2/v3|
|Policy Based Forwarding (L3-L7)||Match Conditions - Source Address, Source Zone, Source Region, Destination Address, Destination Zone, Destination region, Application of stream, Schedule, IP version, IP-Flags, DSCP, IEEE 802.1P, MOS support
Actions - Permit, Drop, Set Nexthop
|QoS||Whitelist/Blacklist on any L2-L4 field, Tenant level policing, Control plane protection, Traffic Classification & Profiles, DSCP/802.1P Marking, Rate-Limiting, Scheduling, Queuing, Shaping, HQoS: Interface Level Shapers, Tenant Level Shapers|
|CG-NAT||Static NAT, Dynamic NAT, NAPT, Destination NAT, Static NAT with Port Translation, Inter-Tenant NAT, ALG support: FTP, TFTP, PPTP, SIP, ICMP, IKE, Endpoint Independent Mapping (EIM) support, Endpoint Independent Filtering (EIF) support, Port Parity, Port Block Allocation (PBA) support, Random Port Allocation (RPA) support, Syslog and IPIX logging|
|Stateful Firewall||Zone-based, Address Objects, Address Groups, Rules, Policies, DDoS (TCP/UDP/ICMP Flood), Syn-Cookies, Port Scans, Host Scans, ALG support: SIP, FTP, PPTP, TFTP, ICMP|
|Application Visibility||Identify more than 3600+ applications and protocols, Application group support, Application filter support, Application visibility and log support, 190+ codecs|
|Next-Generation Firewall||Policy Match Triggers: Applications, App filters, App Groups, URL Categories, Geo Location, Application Identity (AppID) based policy rules, Application Groups and Filters, Packet capture on AppID, IP Blacklisting, Whitelisting, Customer App-ID signatures, SSL Certificate- based protection, Expired certificates, Untrusted CAs, Unsupported cyphers and key lengths, 802.1x, DNSSEC|
|Anti-Virus||Network/flow-based protection with auto-signature updates. HTTP, FTP, SMTP, POP3, IMAP, MAPI support, 35+ file types supported (exe, dll, office, pdf & flash file types), Decompression support, Storage profile support, Auto signature updates|
|URL Categorization & Filtering||URL categories & reputation, including customer-defined, Cloud-based lookups, Policy trigger based on URL category, URL profile (blacklist, whitelist, category reputation), Captive portal response including customer defined, Actions include block, inform, ask, justify, and override|
|SD-WAN||Secure, zero touch provisioning, Template-based policies with parameterization, Centralized route and policy enforcement, L7 Application SLA enforcement, SLAs with QoS, Intelligent path selection – default and user-defined, Dynamic bandwidth measurement of SD-WAN paths, Support Active/Active and load balancing of Transport, Overlay encapsulation: MPLS over VXLAN, IPsec over VXLAN, Redundant SD-WAN controller, Integration and support for 3rd party legacy appliances, Flexible topology support – Full-Mesh, Partial- Mesh, Hub-Spoke, Controller behind branch, branch-behind-branch, Spoke-hub-hub-spoke, Custom|
|Advanced SD-WAN Features||Packet Striping for best throughout across bundle of low speed interfaces, Packet Cloning / De-cloning for replicating, important flows to ensure best performance and availability, Forward Error Correction to restore traffic in lossy and over-congested links, MOS Based Traffic Steering to measure VoIP flows quality and to steer VoIP flows to achieve best voice session qualities, Cloud Provider DIA Traffic Optimizations; Probe based, as well as Inline Traffic Measurements and more|
|IPsec VPN||Site-to-site, route/policy-based VPN, IKEv1, IKEv2, DPD, PFS, ESP and ESP-HMAC support, Symmetric Cipher support (IKE/ESP): AES-128 and AES-256 modes: CBC, CNTR, XCBC, GCM, Pre-shared and PKI authentication with RSA certificates, Diffie-Hellman key exchange (Group 1,2,5), Per-tenant and VRF aware, MD5 and SHA1 based HMAC|
|Load Balancing||Virtual Server support, Load Balancing algorithms: RR, WRR, Src. IP, Dest. IP, IP Hash, Least connections, Layer 4 load balancing, monitoring, persistence (Src, Dst, Src-Dest, Mac), Deployment modes: Transparent, Routed and Direct Server Return|
|SSL Inspection||HTTPS proxy (forward & reverse), SSL v3, TLS 1.0, 1.1, 1.2 and 1.3 proxy, Captive Portal for HTTPS requests|
|DNS Proxy||DNS Split Proxy, Transparent Proxy|
|User & Group Level Authentication||Support for Active Directory, LDAP, Radius, Kerberos, SAML, Captive Portal Form for LDAP|
|Service Function Chaining (SFC)||Encapsulation and tagging types: VLAN, VXLAN, MPLS, MPLS over GRE, NSH, SFC|
*The features are dependent on the hardware capability. For CSG appliances, please refer to ‘Cloud Services Gateway Appliance’ data sheet for details on the hardware capability of CSG devices
- VMware vSphere 5.5 & 6.0, KVM – RHEL/CentOS 6.4, Ubuntu 12.04, 14.04, Xen, Hyper-V
- KVM – RHEL/CentOS 6.4, Ubuntu 12.04, 14.04
VMware vCloud Director Support: vCloud Director 5.5 & 6.0
OpenStack Version Support: Havana, Icehouse, Juno, Kilo
OpenStack Distro Support: Red Hat, Canonical Ubuntu, Piston CloudOS
Cloud Platform Images: Amazon Machine Image (AMI), Google Compute Engine (qcow2), Microsoft Azure VHD(VHD)
Download the Versa Operating System Datasheet (.PDF)
